Panasonic 2000K EBLOne
Product code 41042

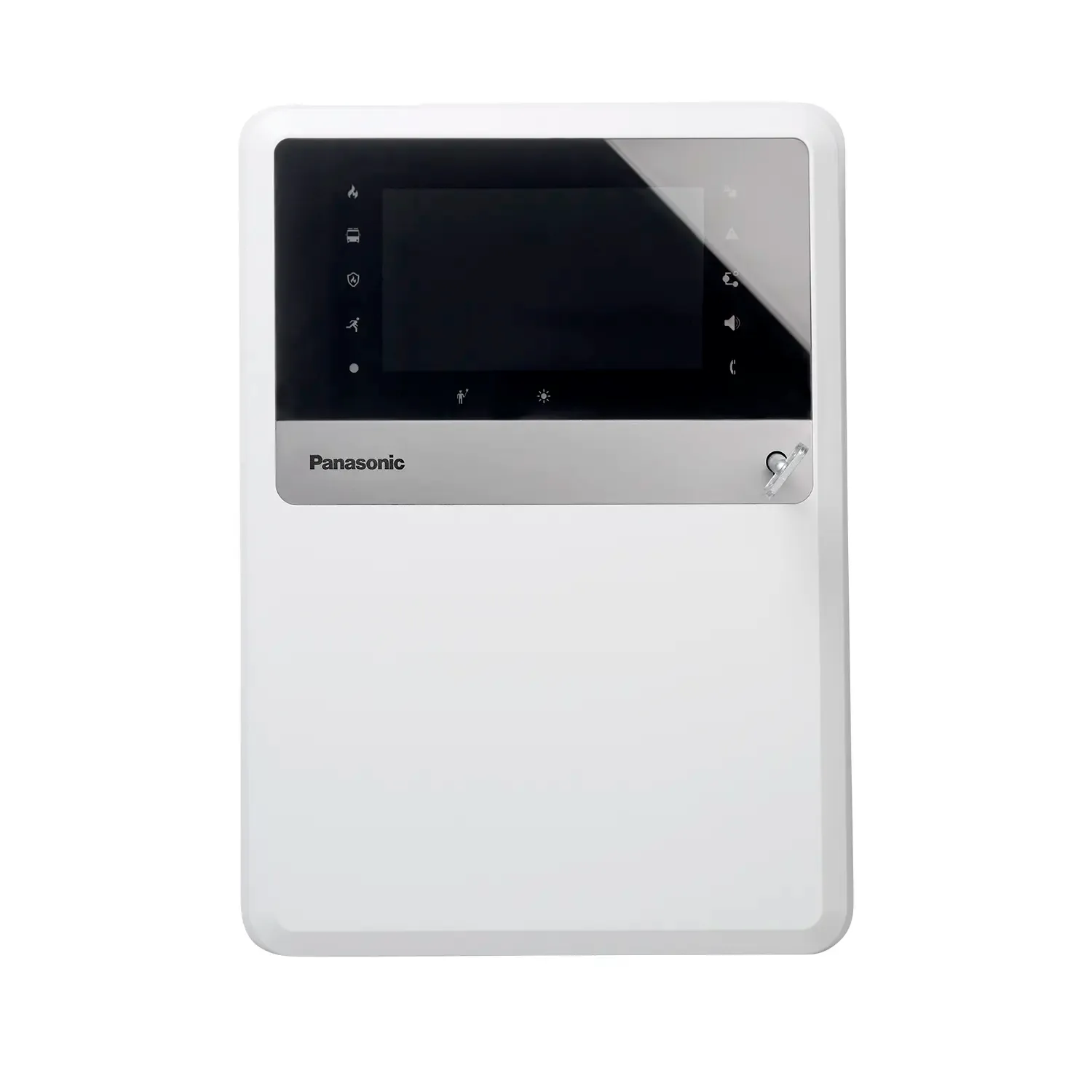

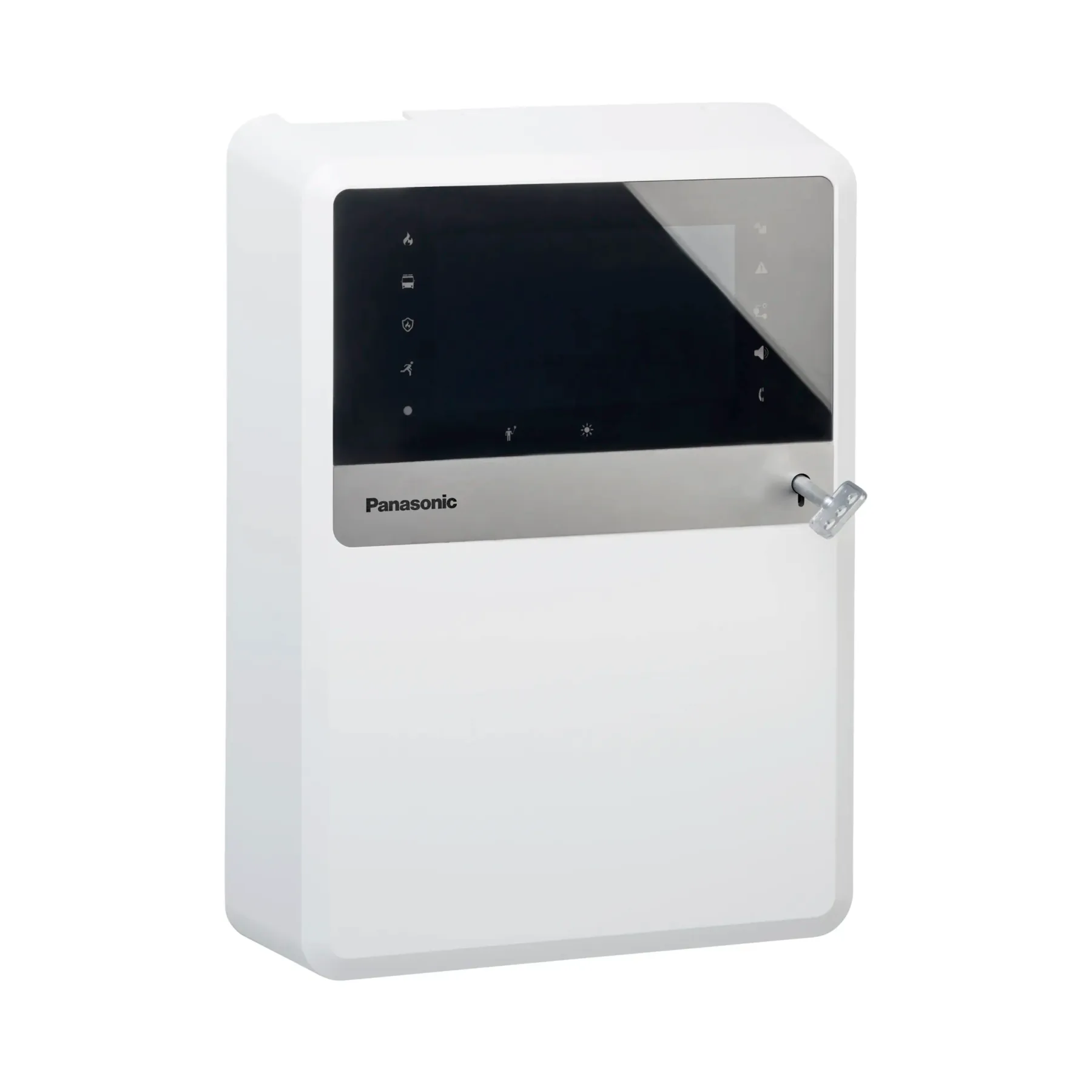

Addressable single-COM-loop fire alarm control panel with a 7" touchscreen. On the 2000K model, the fire brigade key also gives access to the touchscreen.
- One COM loop, up to 253 addresses and alarm points
- 7" capacitive colour touchscreen and 12 status LEDs
- Fire brigade key gives access to display functions (2000K)
- Approved to EN 54-2 and EN 54-4
- Commissioning with a wizard on the panel or with EBLWin
- Outputs for alarm and fault transmission, 2 programmable inputs
✓ In quote request: pcs ·
✓ On your document list · Select and download documents
The product sheet opens in a new tab, where you can print or save it.
A quote or help choosing products? Sales+358 40 668 7641myynti@pap.fi
A technical question about a device? Technical support+358 40 668 7643tuki@pap.fi
Product description
Panasonic EBLOne 2000K is an addressable fire alarm control panel for sites where a single COM loop is sufficient, such as sheltered housing, accommodation premises, day-care centres, schools and shops. Up to 253 addressable devices can be connected to the loop. The panel meets the requirements of EN 54-2 and EN 54-4 and is intended for dry indoor spaces.
The panel is operated with a 7-inch capacitive colour touchscreen with 12 status LEDs. In a fire alarm, the display shows which alarm points have triggered the alarm and displays the programmed alarm text. There can be ten users on three user levels, and users log in with a six-digit password. On the 2000K model, the fire brigade key also gives access to the display buttons. Commissioning can be done on the panel with a wizard or with EBLWin via the USB-C connection.
The panel has relay outputs for fire alarm and fault transmission, two programmable inputs, a monitored 24 V output S1 (max. 250 mA) and voltage outputs for auxiliary equipment and a gateway. An internal switched-mode power supply (230 V AC / 24 V DC, 1.7 A) and one or two 12 V 17 Ah batteries (not included) ensure the power supply.
Installation
The panel is mounted on a wall on a non-combustible surface, such as concrete. The mains supply is taken from a dedicated fuse via a double-pole safety switch. The COM loop conductor size is 0.3–2 mm².
Technical data
- Product code
- 41042
- Manufacturer
- Panasonic
- Product group
- Fire alarm systems › Control equipment
- COM loop
- 1 (max. 350 mA)
- Sub-loops
- Up to 4 sub-loops using a COM loop repeater
- Addresses
- Max. 253 addresses and 253 alarm points
- Display
- 7" capacitive TFT touchscreen, 1024 × 600
- USB port
- USB Type-C
- Output
- Relays for fire alarm and fault routing, supervised 24 V output S1 (≤ 250 mA)
- Input
- 2 programmable inputs
- Weight
- 4 kg (without batteries)
- Dimensions
- 422 × 310 × 122 mm (H × W × D)
- Battery
- 1–2 × 12 V 17 Ah VRLA (not included)
- IP rating
- IP30
- Operating temperature
- −5…+40 °C (indoor use only)
- EN 54 approval
- EN 54-2, EN 54-4
- CPR
- 0402-CPRC500347 (EN 54-2), 0402-CPRC500348 (EN 54-4)
- Operating voltage
- 230 V AC (195–253 V), 50 Hz
- Power supply
- 230 V AC 1.1 A / 24 V DC 1.7 A
- Material
- PBS/ABS
- Colour
- RAL 9003
- Humidity
- Max. 95% RH, non-condensing
- Mounting
- Wall mounting on a non-combustible surface
